5000lbs Tandem Trailer Axle Suspension Kit - 4 Leaves 2500lbs Trailer Double Eye Spring Equalizers Kit Hangers Kit Shackle Straps Kit

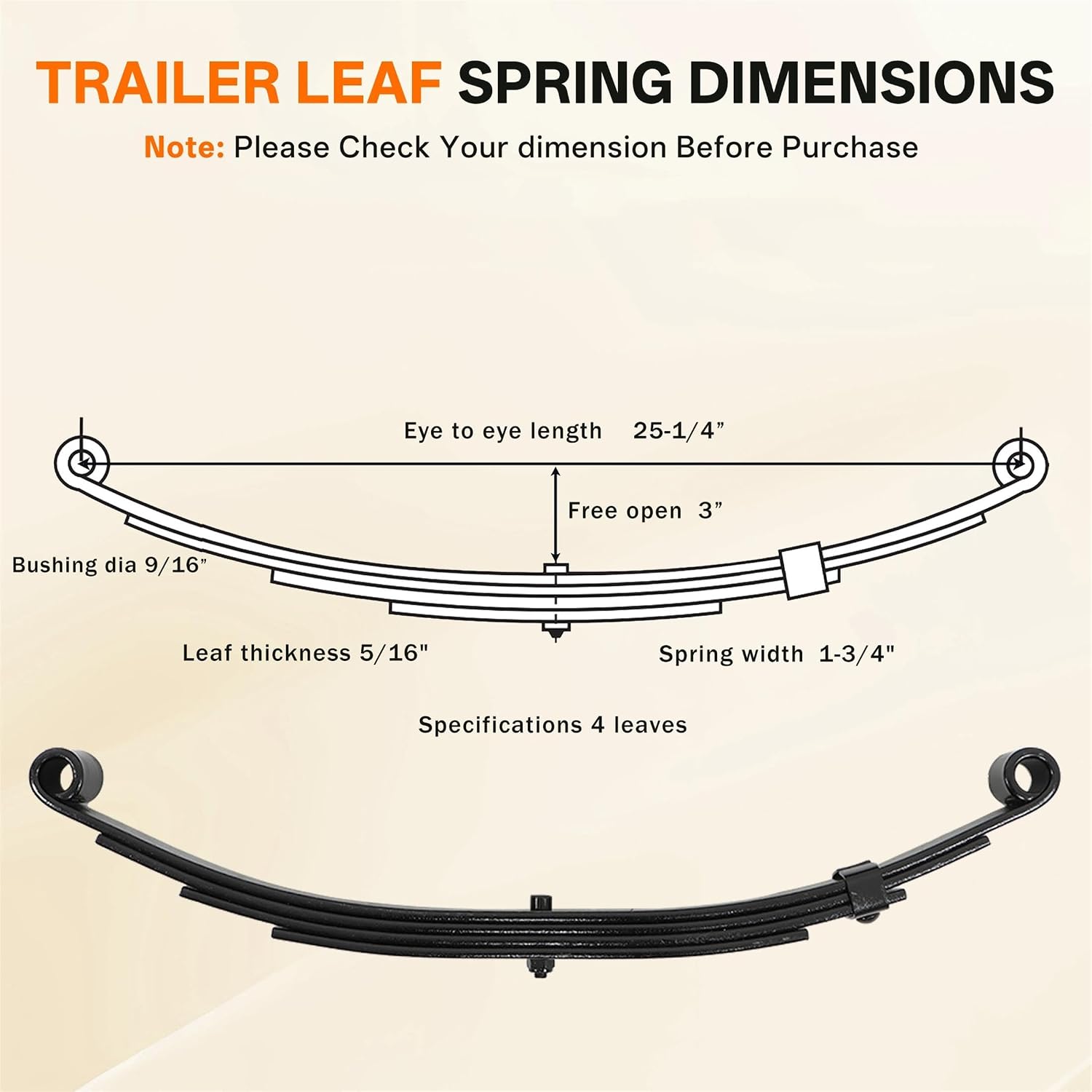

Product Specifications: Product includes 4 x 2500lbs-4 leaf springs(bushings), 2 x equalizers, 2 x center hangers, 4 x front and rear hangers, 8 x shackle straps, 14 x shackle bolts and lock nuts, 8 x bushingsSpring capacity: 2500 lbsAxle capacity: 5000 lbsLength from center of spring eye to center of spring eye (unloaded): 25-1/4 inchFree open: 3 inchSpring width: 1-3/4 inchEye diameter with bushing: 9/16 inchSingle leaf thickness: 5/16 inchNumber of leaves: 4

• 2,500lbs capacity per each spring, for 5,000lbs axle, eye to eye length: 25-1/4 inch, free open: 3 inch, width of leaf: 1-3/4 inch, 4 leaves
• The leaf spring provides a connection point for the trailers axle, suspending it from the trailers frame
• Each blade spring bends to absorb road shocks while driving, ensuring horizontal driving on bumpy and uneven surfaces
• To install this leaf spring, you need the hanger, shackle strap, and suspension bolts, and if you are just replacing the spring, you should replace the shackle strap
• Product includes 2 x equalizers, 2 x center hangers, 4 x front and rear hangers, 8 x shackle straps, 14 x shackle bolts and lock nuts, 8 x bushings
