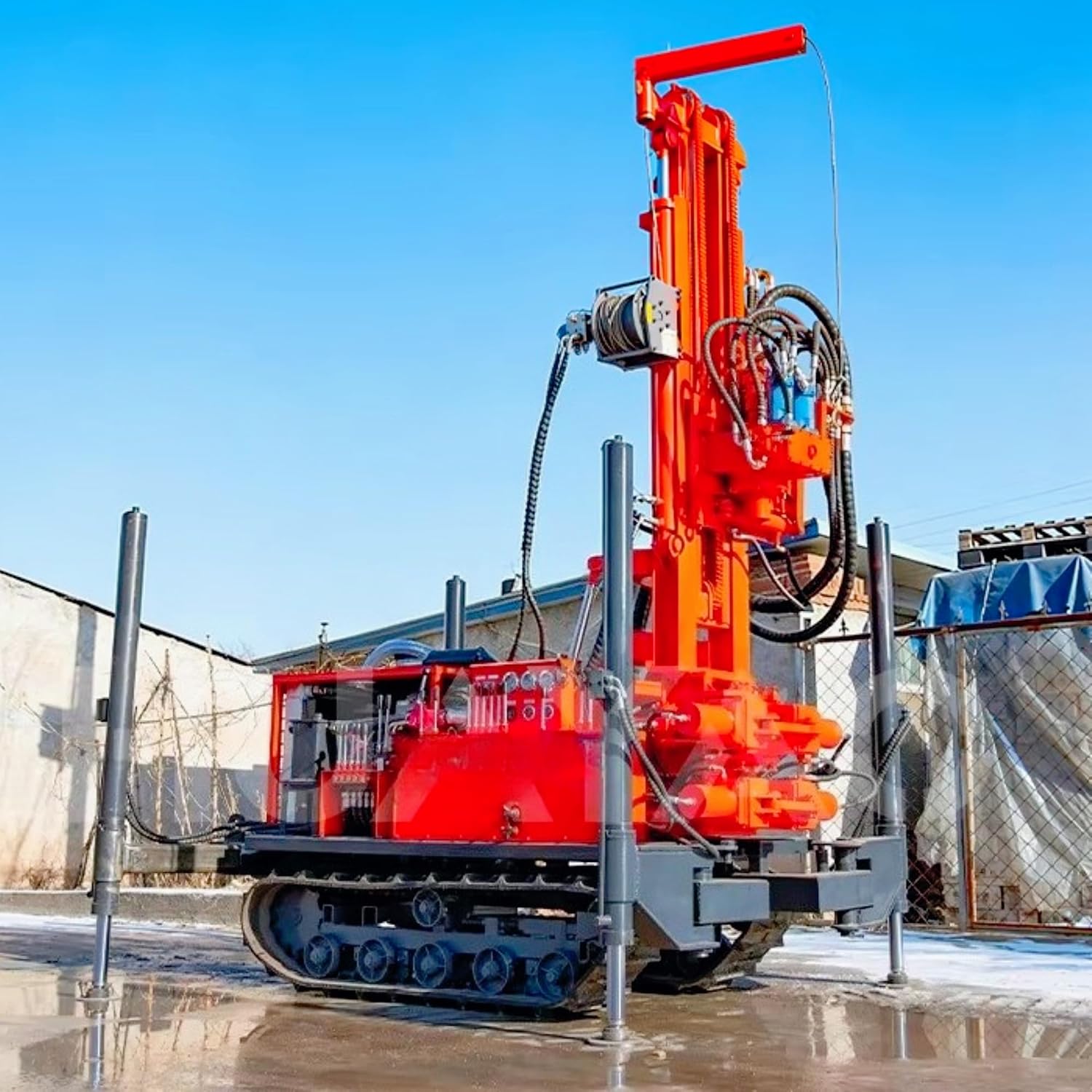

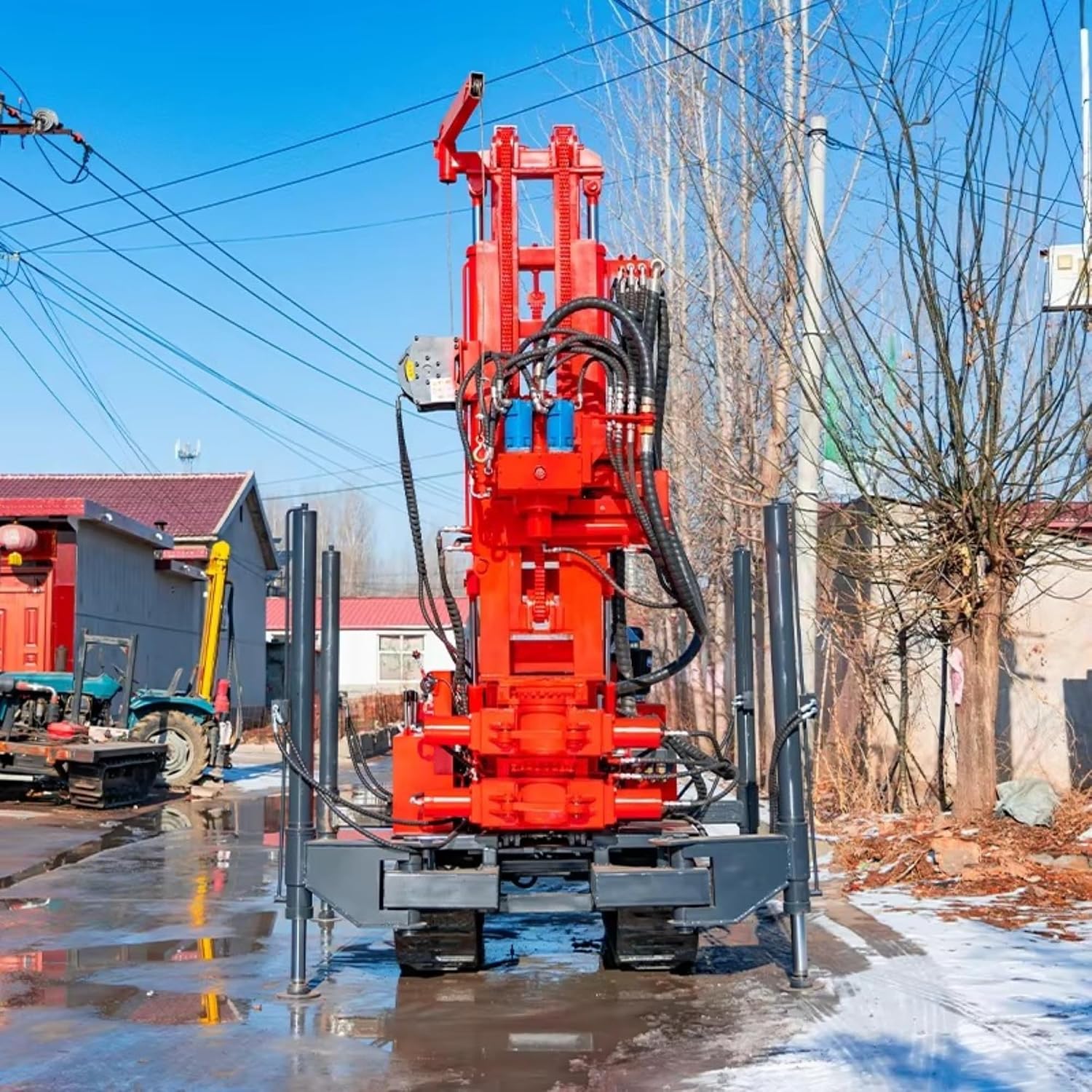

Hard Rock Water Well Drilling Rig, Mobile Hydraulic Borehole Machine with High Torque for Granite & Gravel, Portable Rock Driller

Type:dth drill rig Usage:Water Well Weight:1200 KG Warranty:1 Year Machinery Test Report:Provided Video outgoing-inspection:Provided Core Components:Motor, Pump, Engine Key Selling Points:Easy To Operate Drilling Diameter:75mm, 150 mm, 200 mm, 300 mm Drilling Depth:Max.200m Mobility:wheel Product name:Water Drilling Machine Application:Water Wells Rock Drill Rig Feature:High Efficiency After-sales Service Provided:Video Technical Support Online Support Color:Customer Required Engine:Customer Required Certification:ISO CE MOQ:1 Set Keyword:Water Drilliing Rig Function:Easy Operate Small Drilling Machine Well digging Agricultural irrigation Geological exploration Emergency rescue Technical Specifications Max drilling depth 160m One-time advance length 1.5m Max drilling diameter 70-300mm Drilling pipe diameter 50/60mm Engine brand CHANGCHAI Rotary torque 1500Nm Rated power 22HP Rotary speed 100r/min Lifting force 8T Length*Width*Height 1900*1200*1700mm Speed of fast lifting 30m/min Machine weight 630KG Fast feeding speed 50m/min Diesel engine The engine adopts diesel engine, which has strong power, stable perfor-mance and strong practicality. lt is suitable for working in any environmentand has high adaptability Power head Tackle tough formations with our high-torque power head, engineered todrill at high speed under heavy load while minimizing jams and downtime Outriggers with rubber tires With an optimized design and robust all-terrain chassis, this equipment de-livers outstanding maneuverability, coping with tough roads and making it ideal for resource surveys and water well drilling Operating table Its straightforward and well-laid-out control panel enables effortless opera-tion, boosting productivity by minimizing training time and reducing thechance of errors Upgrade your home to renewable energy. This rig is the perfect companion for HVAC contractors and green-energy DIYers looking to install ground-source heat pumps.

• Customizable Water well drilling rig with multiple configuration options to meet various operational needs. Designed for versatility and performance across farming, What app+86 I38 37I6 12O1construction, and land management applications.
• Rock Penetration: Engineered with high-torque rotation to bite through tough rock layers.
• Vibration Dampening: Reinforced frame absorbs shock during percussion and rock drilling.
• PDC Bit Compatible: Specifically designed to work with professional PDC and diamond bits.
• Heavy-Duty Feed: Increased downward pressure for faster penetration in compacted gravel.
• Stable Footing: Extra-thick steel support legs ensure the rig stays anchored on stony ground.
