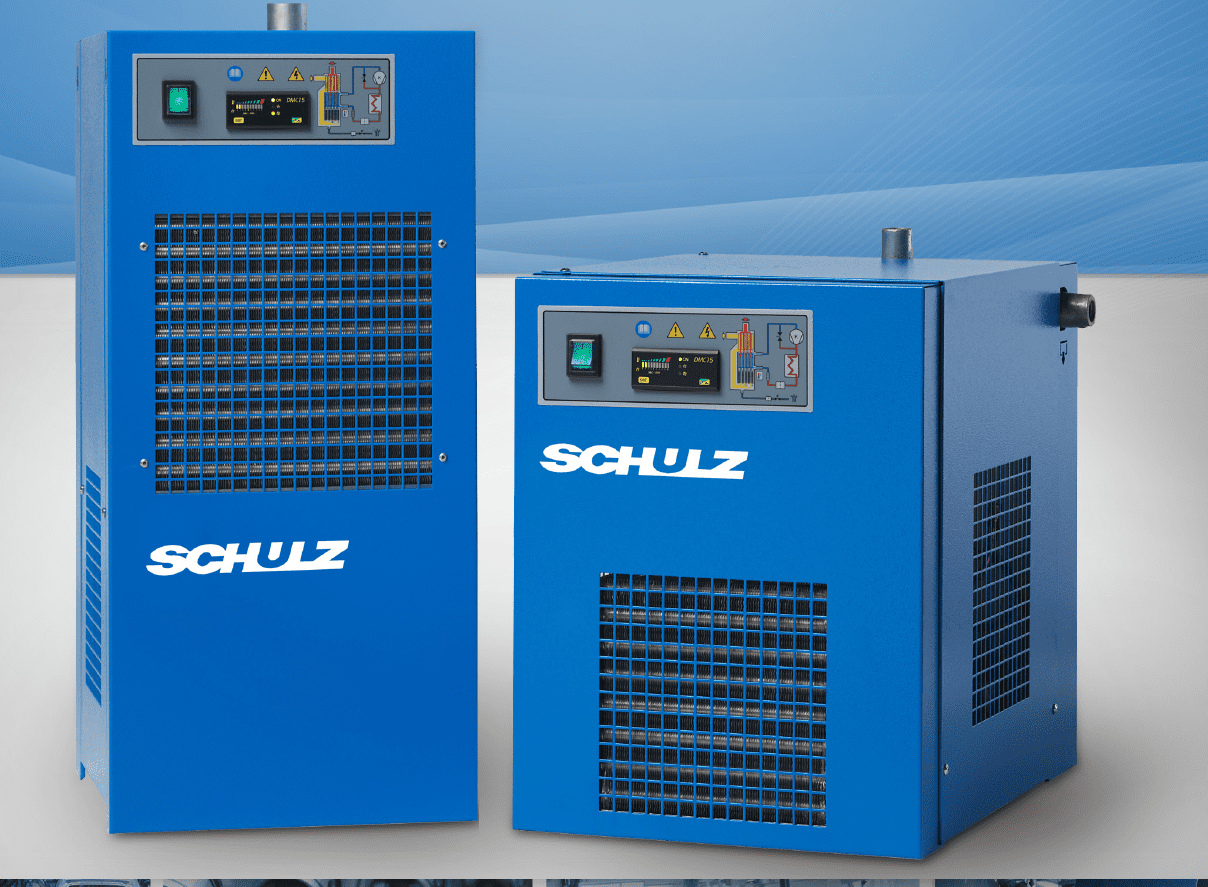

SCHULZ SMH 40 CFM HIGH TEMPERATURE REFRIGERATED AIR DRYER, 115V 60HZ

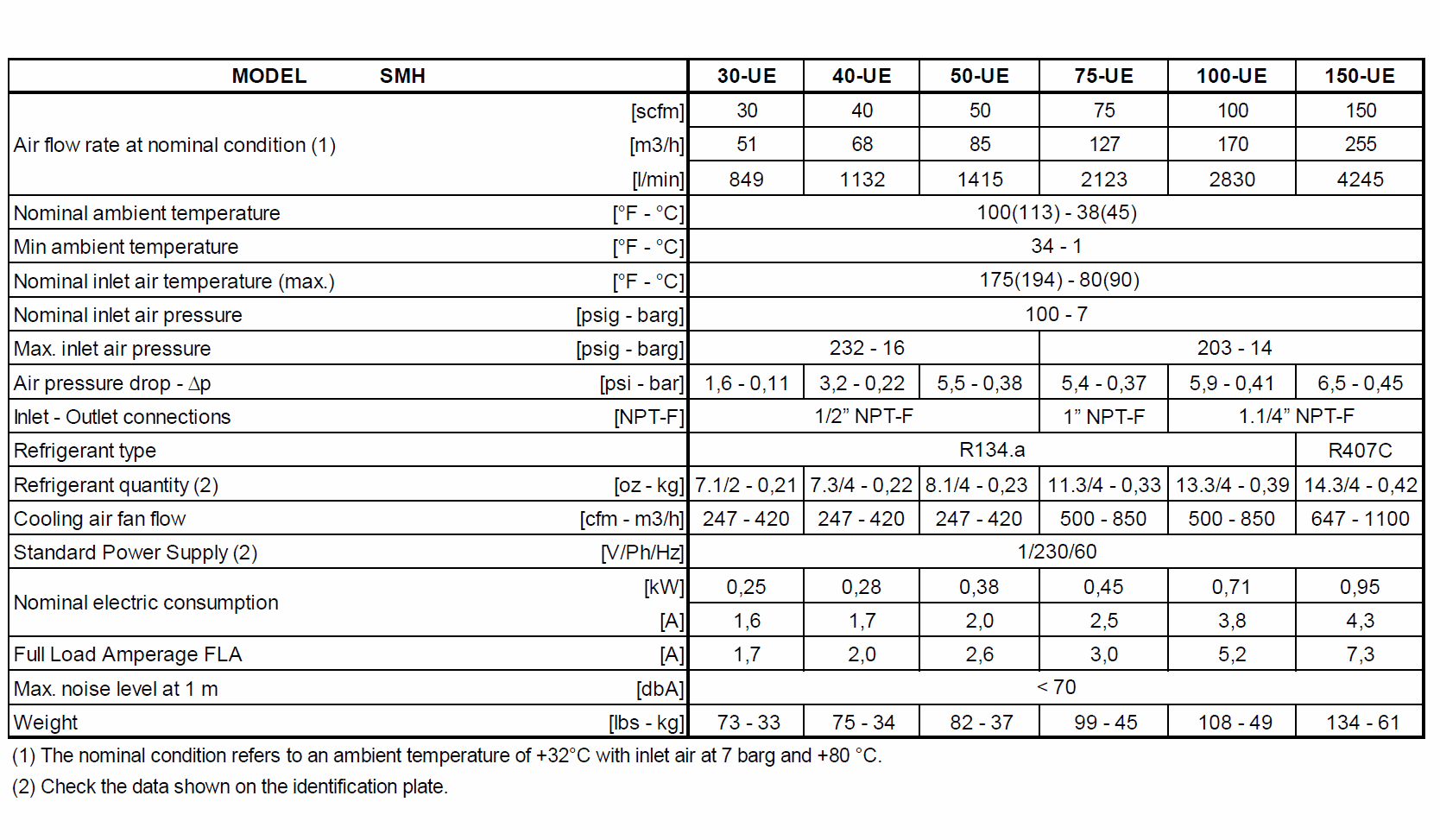

<h1>SCHULZ SMH 40 CFM HIGH TEMPERATURE REFRIGERATED AIR DRYER, 115V 60HZ</h1> \nSchulz high inlet temperature dryers can handle inlet temperatures up to 194 degrees F and ambient temperatures up to 113 degrees F. Schulz high inlet temperature dryers are ideal for piston air compressors. \n<div> \n<div> \n<div> \n<div> \n<div> \n<div> \n<div> \n<div> \n \nSchulz SMH High Temp Dryers eliminate the need for separate aftercooler and moisture separators, conserving valuable floor space. This also means less equipment to install and maintain. Plus, it saves energy normally lost with an aftercooler. \n \nWith SMH High Temp Dryers it is no longer necessary to upsize the dryer compensate for. High inlet temperature or high ambient temperature conditions. Schulz SMH dryers are designed to accept up to 194 F inlet air temperatures and operate in 113 F ambient conditions \n \n</div> \n</div> \n</div> \n</div> \n</div> \n</div> \n</div> \n</div> \n \n \n \nTechnical Features \n \n \n \n \nModel \nSMH 40 \n \n \nFlow (CFM) \n40 \n \n \nConnection (in) \n1/2" NPT-F \n \n \nVoltage (V) \n115 \n \n \nRefrigerant Fluid \nR134a \n \n \nFrequency (Hz) \n60 \n \n \nPhase \nSingle \n \n \nNominal Voltage (A) \n4.7 \n \n \nDimensions (HxWxL in) \n26 x 17 x 17 \n \n \n \ncatalogue link: \n \nhttps://schulzproducts.com/wp-content/uploads/2024/03/SMH-HIGH-TEMP-MANUAL.pdf
